TLDR: We achieve competitive results in multimodal AI using late fusion techniques, training an 8B parameter model on a single 8xH100 cluster, outperforming similar-sized open-source models across various benchmarks for less than $2000

We also test out an early fusion architecture and determine that while it initially underperforms compared to late fusion, it shows potential for richer cross-modal learning given more extensive training

Quick Background

I spent a good chunk of summer at Omega Labs helping them kickoff their experiments with multimodal artificial intelligence — from creating datasets, setting up training code, and doing the runs

A big issue I found while doing this is the lack of resources and libraries. Between the dozens of training and eval libraries and optimizations being researched — there seems to be a "late" focus on developing good tools for training multimodal intelligence

So, I tried to make it my goal this summer to both have some code (which I will talk about at the end) and writing (this) to address an issue I got pretty deep into

Hope you enjoy!

What is Multimodal and Why?

Machine learning, particularly deep learning, has made remarkable progress in recent years. Many of the most successful and widely-used models focus on single modalities:

Natural Language Processing (NLP): Models like GPT (Generative Pre-trained Transformer), BERT, and Mamba
Computer Vision: Convolutional Neural Networks (CNNs) and Vision Transformers (ViT)
Speech Recognition: Models such as DeepSpeech and Wav2Vec

While these single modality models excel in their specific domains, they are limited to processing and understanding only one type of data input. They are trained for the purposes of a specific "pipeline"

text2text
image2text
audio2text
image2video
and more...

It can become easy to see the number of "pipeline permutations" we have grows fast. If we consider only 3 main modalities — text, audio, and video (images can be one frame of video...), that means we would need $3*3=9$ state-of-the-art models in each modality to have tools to cover all possible pipelines

Multimodal models are individual models that cover all of these pipelines, so they win in terms of application-efficiency

Is Multimodal Provably better than Unimodal?

This is a great question! I feel like our intuition says "yes" because humans are naturally "multimodal" so we should model our models off that. But a proof that's more robust is one presented by the Institute for Interdisciplinary Information Sciences et. al in this paper

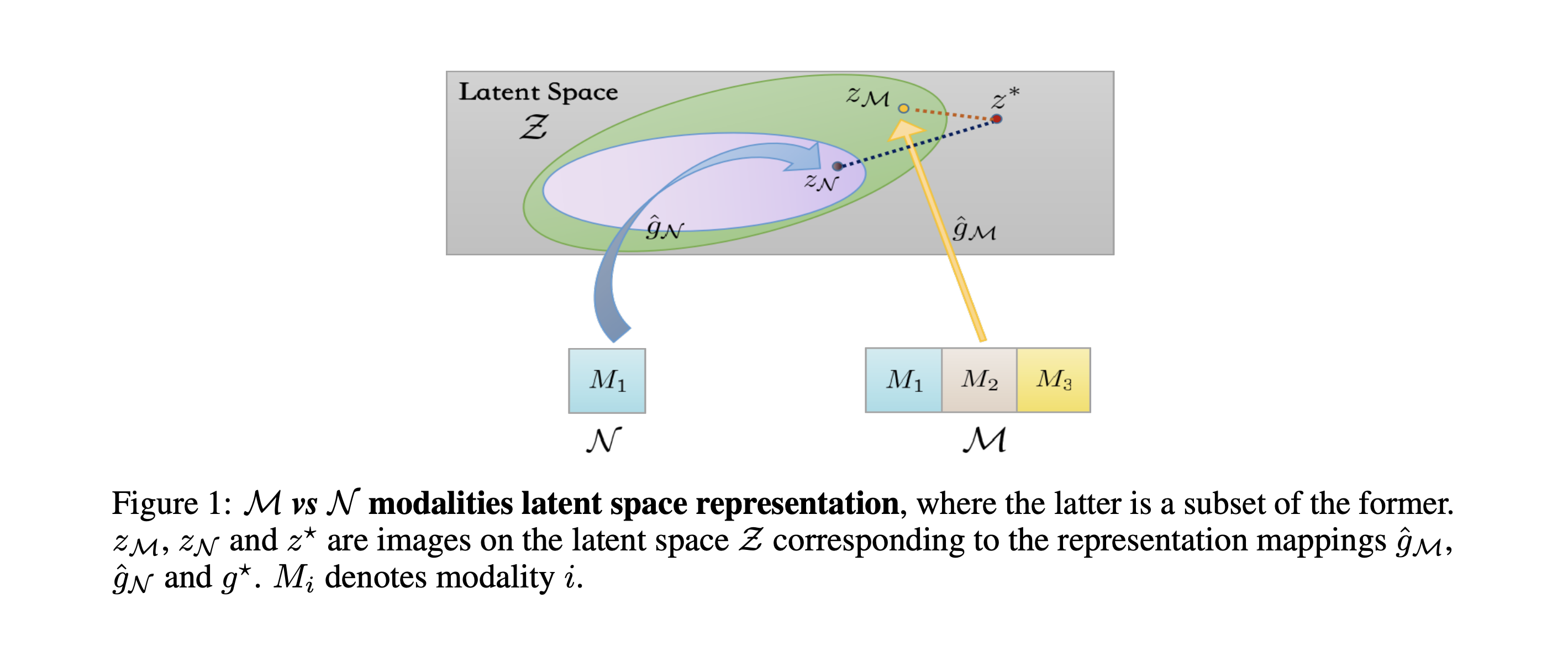

Suppose we have a machine learning task that involves data from multiple different modalities - for example, images, text, and audio. We can choose to train an encoder using all of these modalities (a multimodal model), or we can select a subset of the available modalities using just that reduced set of inputs (a uni-modal model)

Formally, the paper defines a "latent representation function" $\hat{g}$ that maps the raw input data into a common latent space

The crucial finding is that $\hat{g}_M$ (our multimodal model) will be closer to the true underlying latent space $g^*$ compared to $\hat{g}_N$ (our uni-modal model). This improved "latent representation quality" is what allows the multimodal model to achieve lower population risk - a measure of the model's expected error or loss on the overall data distribution, not just the training set

The intuition is that by leveraging the complementary information contained across the multiple data modalities, the multimodal model can learn a more comprehensive and accurate representation of the latent structure inherent in the data. This latent space is the foundation upon which the final task-specific mapping is built, so having a higher quality latent representation translates directly to better end-to-end performance

Does Multimodal Scale?

A natural question to have is if training multiple modalities is more cost-efficient?

I have not come across any formal literature to prove this, but in this scaling laws paper by FAIR — training on speech and text modalities together at 30B scale is somehow better than training 2 separate 30B models on each domain. You can say this also applies to existing multimodal models like GPT-4V, LlaVA, and others

The big point here is how multimodal is a very elegant next-step in existing models. From what we've discussed about "higher-quality" latents and also scaling, there is no reason to incorporate more mixed data and shared latent representations in generative models (which transformers dominate right now)

Late Fusion && Early Fusion

How do we do that? There are currently two main methods — both of which I've experimented with over the summer

Late Fusion

Late fusion multimodal models consist of:

Separate unimodal networks for each input modality
A fusion mechanism that combines the outputs of these networks

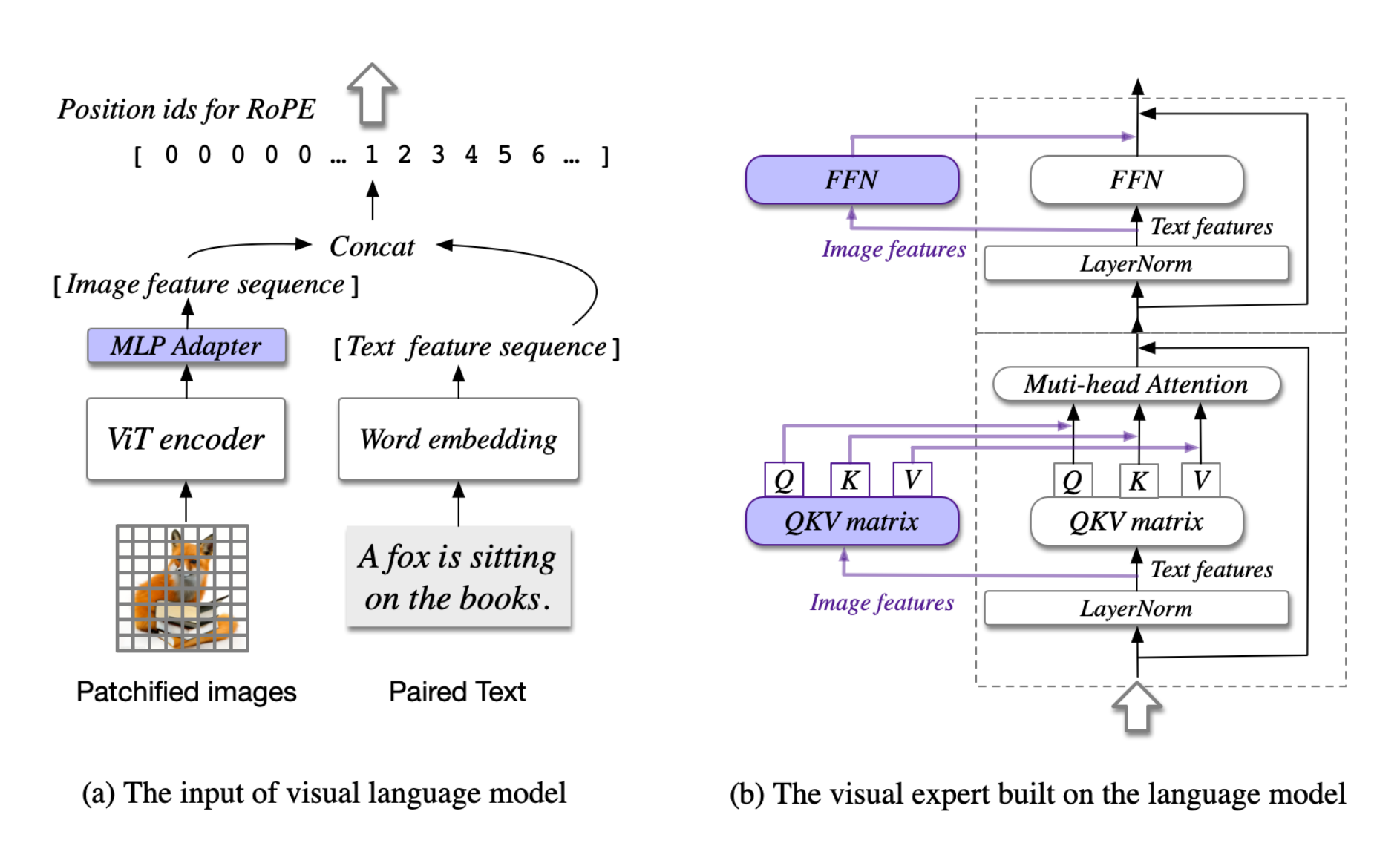

A common version of this is training a projection layers for each modalities encoders for a pre-trained transformer

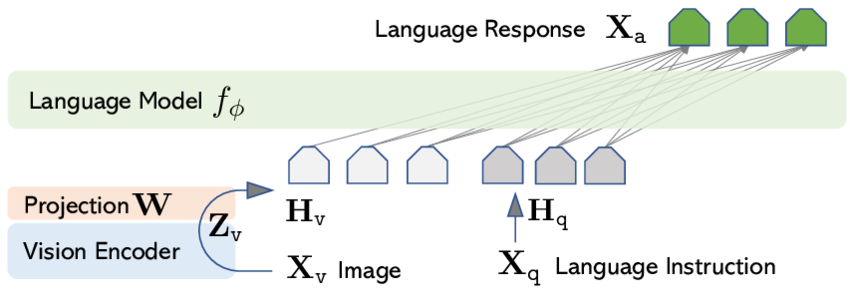

Take a look at LlaVA's architecture, the $W$ projection part is trained to take an image $X_V$ that gets encoded by encoder $Zv$ (this can be any embedding model ex. CLIP), so that the language model $f{\phi}$ understands it

I'll talk more about the actual application of these methods in the Experiments section

Early Fusion

Early fusion, on the other hand, combines the different modalities at the input level or very early in the network architecture. The process typically involves:

Concatenating or otherwise combining the raw input features from different modalities
Passing this combined input through a single, unified network

The reason this is called "early" compare to late is that we are learning each modality within the model "earlier" than just making a general model we can encode several modalities to "later"

With transformers (again) we would typically approach early fusion by modifying the tokenization and embedding process to handle multiple modalities simultaneously

Unified tokenization: Instead of having separate tokenizers for each modality, we create a single tokenizer that can handle different types of input (this is the interesting problem!)
Shared vocabulary: We create a comprehensive vocabulary that includes tokens for all modalities. This means our model's embedding layer needs to be able to represent text, image patches, audio segments, and any other modalities we're working with
Positional and modality encoding: Along with the token embeddings, we add:
- Positional encodings to provide sequence information for each modality
- Modality-specific encodings to help the model distinguish between different types of input. We can use media tags to do this! ( ex. <img> put image tokens here...</img>)
Single transformer stack: All these embeddings are then fed into a single transformer architecture. This allows the self-attention mechanisms to operate across all modalities from the very beginning of the network

The key advantage of this early fusion approach is that it allows the model to learn cross-modal relationships from the ground up. The transformer can potentially discover complex interactions between modalities that might be missed in a late fusion approach

How Does Multimodal Tokenization Work?

This could be a whole article on its own, and that is not a bad thing! The research on this topic is extremely interesting, and also — in my opinion — very early

The backbone behind much of the research, and existing models (Chameleon by Meta, Gemini, and probably GPT-4o) tokenizers are Vector Quantized Variational Autoencoders (VQ-VAE)

Variational Autoencoders (VAEs)

VAEs are a type of generative model that learn to compress high-dimensional data into a lower-dimensional latent space. They consist of two main components:

An encoder network that maps input data $x$ to a distribution $q(z|x)$ over latent variables $z$
A decoder network that reconstructs the input from samples of the latent variables

This objective encourages the model to learn a compact, meaningful latent representation while still being able to reconstruct the input data accurately

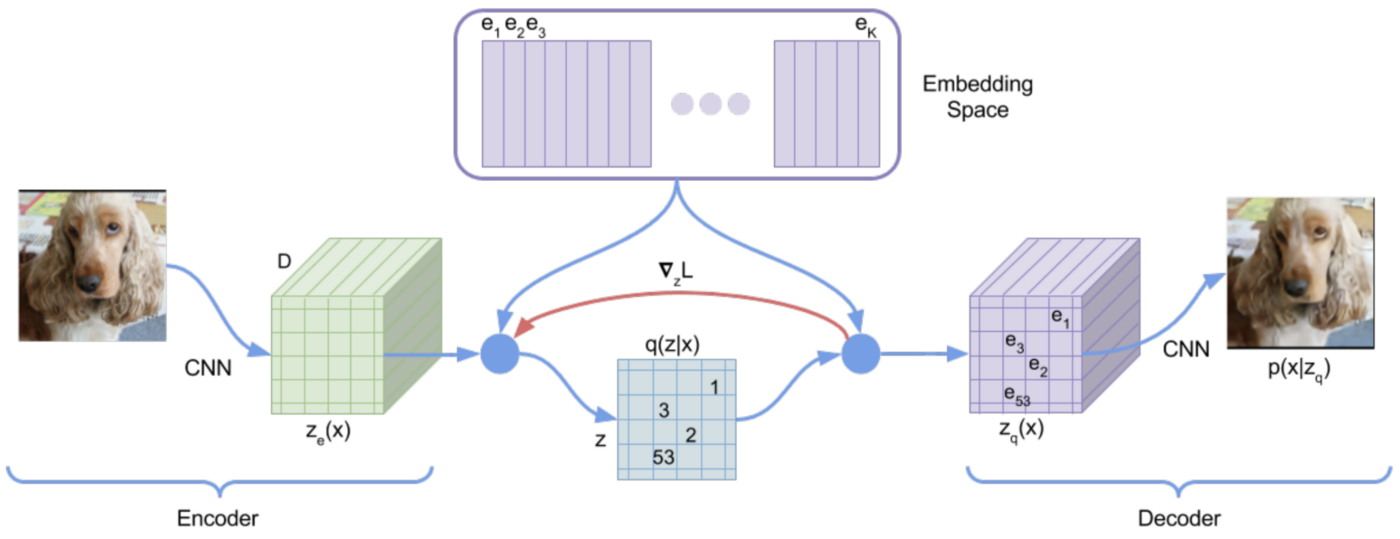

Vector Quantized VAEs (VQ-VAEs)

VQ-VAEs build upon the VAE framework but introduce a crucial modification: discrete latent variables. Here's how they work:

Encoder: Similar to VAEs, the encoder maps input $x$ to a continuous latent space
Vector Quantization: Instead of directly using this continuous representation, VQ-VAEs quantize it using a codebook of discrete vectors
- The encoder's output is replaced by its nearest neighbor in the codebook
- This process can be thought of as assigning each latent vector to a "code" in the codebook
Decoder: The decoder then reconstructs the input from these discrete codes

Codebooks are a key component of VQ-VAEs. A codebook is essentially a dictionary of learned vector representations, also known as "codes" or "embeddings". Each code in the codebook represents a prototype or archetype of a particular feature or pattern in the data. During the forward pass, the continuous output of the encoder is matched to its nearest neighbor in the codebook, effectively discretizing the latent space

Training the codebook is an integral part of the VQ-VAE learning process. The codebook vectors are updated using an exponential moving average of the encoder outputs assigned to them. This allows the codebook to adapt to the data distribution over time

If you are wondering what the final tokens look like, they are just the indexes of each codebook vector used

It makes sense why this is called "Vector Quantized" now. We use vectors within our codebook to discretize latents into integers, so we can use them as tokens

Why does this work?

The first point is obvious: their discrete latent space naturally aligns with tokenization. But a more elegant reason is how they sidestep the posterior collapse problem that plagues standard VAEs. By quantizing the latent space, VQ-VAEs force the model to use these discrete codes meaningfully, ensuring that the latent representation captures important features of the input data

Experiments

A starting point for all experiments was forking torchtune and modifying Llama3's architecture. The existing fine-tuning support is amazing — the PyTorch team really carries this industry on their backs

All of our experiments use the instruct Llama3-8B on half-precision, with runs only using a single 8xH100 node. We do a whole fine-tune of all the Llama3 weights using LoRA — we found LoRA cheaper + faster than QLoRA

We did training runs for both late fusion and early fusion

We used image-bind embeddings + a learned MLP layer for our late fusion model
For our early-fusion model, we used a pre-trained VQ-VAE checkpoint trained on image-net + an additional embedding layer

We achieve competitive state-of-the-art results to similar-sized open-source models

Data

We mostly relied on converting existing image, audio, text, and video datasets into a common conversation format that we could do orchestration on

If you check out my hugging face you'll see a bunch of datasets prefixed with "mm" that have been converted to do that

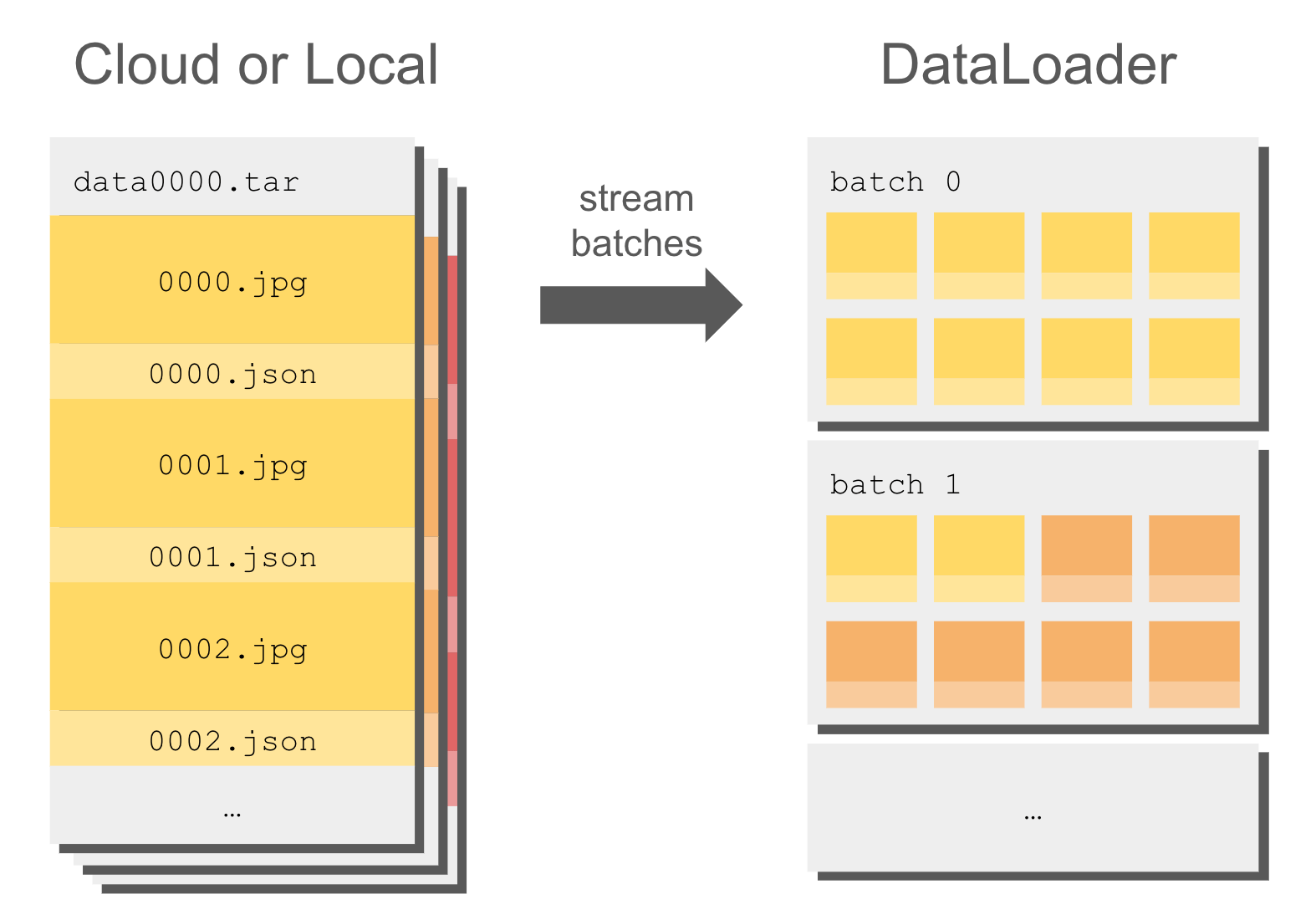

Something we tried was using WebDataset + GCP object store as to not have to download these datasets to our machines disks all the time

Streaming helps with this

Object store storage is also cheaper than machine disk storage

Standard Object Storage: Suitable for frequently accessed data

Price: $0.026 per GB per month in the US

Standard Persistent Disk: Suitable for general-purpose workoads.

Price: $0.04 per GB per month

WebDataset also lets you easily store encoded versions of image, audio, and video. A common mistake I ran into was decoding the media when doing processing on it, and pushing that. You'll end up with super bloated datasets

It is easy to convert existing huggingface datasets to WebDataset format though

import webdataset as wds
import io
import json

def write_to_webdataset(dataset, output_path, samples_per_shard=10000):
    with wds.ShardWriter(output_path, maxcount=samples_per_shard) as sink:
        for i, sample in enumerate(dataset):
            # Convert sample to WebDataset format
            key = f"{i:08d}"

            # Assuming 'image' and 'label' are fields in your dataset
            # Adjust these based on your actual dataset structure
            image_bytes = io.BytesIO()
            sample['image'].save(image_bytes, format='PNG')

            sink.write({
                f"{key}.png": image_bytes.getvalue(),
                f"{key}.json": json.dumps({"label": sample['label']})
            })

We made a pretty clean system to just wrap all these datasets using a round robin scheduler

class RoundRobinDataset(IterableDataset):
    def __init__(self, datasets, tokenizer, world_size=1, rank=0, perception_tokens=1, **kwargs):
        self._ds_cfg = datasets
        self._tokenizer = tokenizer
        self._world_size = world_size
        self._rank = rank
        self._perception_tokens = perception_tokens
        self._kwargs = kwargs
        self._reset_datasets()
        self._len = reduce(add, self._ds_lengths)

    def _reset_datasets(self):
        self._datasets = [
            instantiate(
                cfg,
                tokenizer=self._tokenizer,
                world_size=self._world_size,
                rank=self._rank,
                perception_tokens=self._perception_tokens,
                **self._kwargs
            )
            for cfg in self._ds_cfg
        ]
        self._ds_indexes = [0 for d in self._datasets]
        self._ds_lengths = [len(ds) for ds in self._datasets]

    def __len__(self):
        return self._len

    def __iter__(self):
        return self

    def __next__(self):
        if not self._datasets:
            self._reset_datasets()
            raise StopIteration()

        # take next sample from ds with lowest progression
        _, next_ds_idx = sorted([
                (ds_idx / ds_len, i)
                for i, (ds_idx, ds_len)
                in enumerate(zip(self._ds_indexes, self._ds_lengths))
        ])[0]

        try:
            sample = next(self._datasets[next_ds_idx])
            self._ds_indexes[next_ds_idx] += 1
            return sample
        except StopIteration:
            del self._datasets[next_ds_idx], self._ds_indexes[next_ds_idx], self._ds_lengths[next_ds_idx]
            return next(self)

Late Fusion Training

We decided to wrap the existing token embeddings with a new layer:

llama3.tok_embeddings = MMEmbedding(llama3.tok_embeddings)

For now, MMEmbedding is just an interface:

class MMEmbedding(nn.Module):
    def __init__(self):
        super().__init__()
    def set_input_context(self, mm_context):
        raise NotImplementedError()

    def forward(self, tokens):
        raise NotImplementedError()

For late-fusion, we created MMProjectionEmbedding to use a projection layer that converts image embeddings set in an "input context" to Llama embeddings:

class MMProjectionEmbedding(MMEmbedding):
    def __init__(self, perception_tokens, embedding_dim, embed_keys, output_dim):
        super().__init__()
        self._perception_tokens = perception_tokens
        self._embedding_dim = embedding_dim
        self._embed_keys = embed_keys
        self._context = []

        dim_out = output_dim if self._perception_tokens == 257 else output_dim * self._perception_tokens
        self.proj_to_llama = nn.Sequential(
            nn.Linear(self._embedding_dim, dim_out),
            nn.GELU(),
            nn.LayerNorm(dim_out),
            nn.Linear(dim_out, dim_out),
        )

    def set_input_context(self, mm_context):
        self._context = [
            {s: torch.cat([embed[k] for k in self._embed_keys], dim=-1)
             for s, embed in context_dict.items()}
            for context_dict in mm_context
        ]

    def forward(self, tokens: Tensor, h: Tensor) -> Tensor:
        for b, context_dict in enumerate(self._context):
            for s, embed in context_dict.items():
                llama_embed = self.proj_to_llama(embed)
                llama_embed = llama_embed.view(self._perception_tokens, -1)
                h[b, s:s+self._perception_tokens] = llama_embed[:h.size(1)-s]
        return h

This approach means multimedia inputs don't get explicitly positionally encoded in the sequence by Llama's RoPE. It's not a big issue since multimedia data usually appears at the end or beginning of sequences. Including more interleaved data helps mitigate this

Using ImageBind (Audio Understanding just from Images!)

We chose to use ImageBind by Meta for late fusion training, as it's a native multimodal embedding model. We ran an experiment training solely on image data, then using embeddings in our model's forward audio pass. The theory was that the projection layer trained on ImageBind image layers would also learn audio and video, since ImageBind embeddings share a common latent space

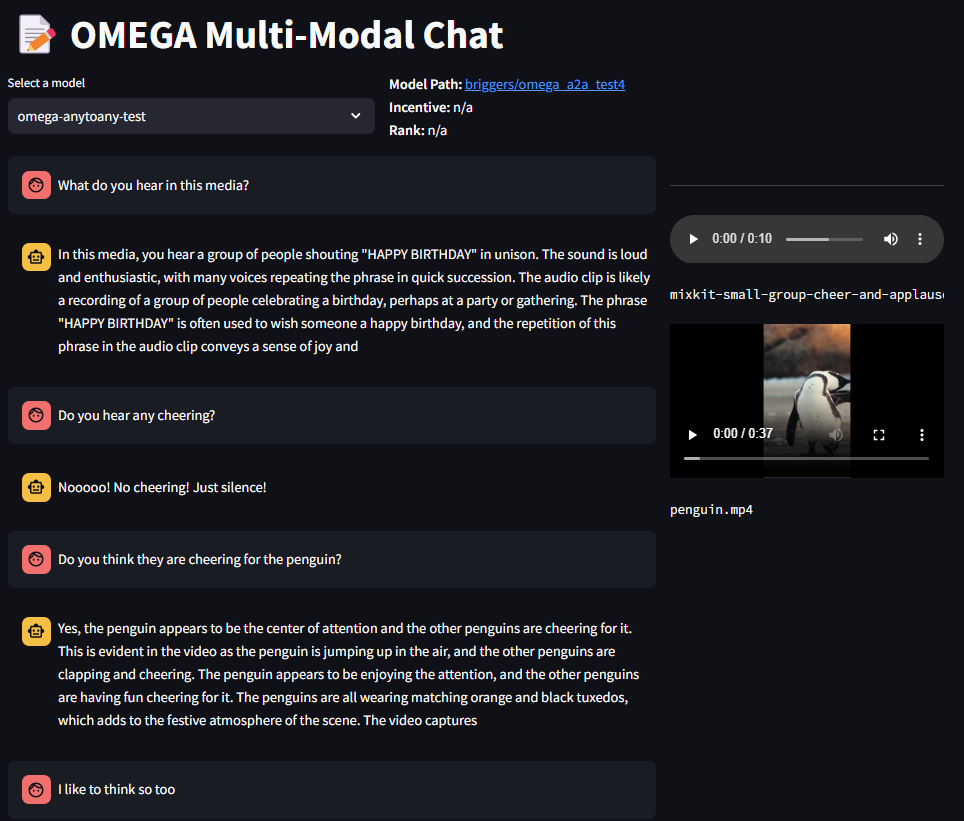

This turned out to be true! We achieved this using about 10 million text-image pairs, which demonstrates why multimodal training is provably better

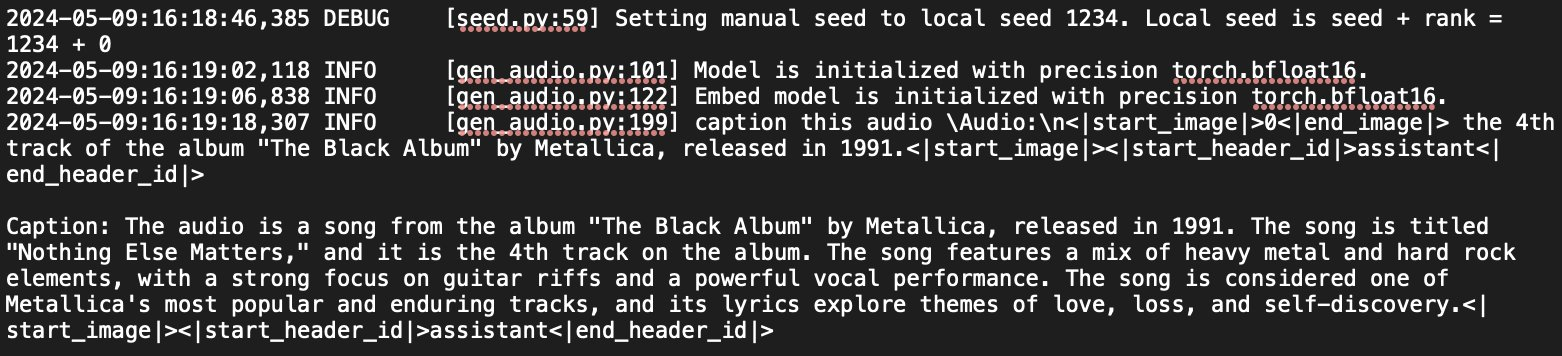

The same thing worked w/ videos + audio

This is trained only on 100 million samples for less than 3k steps! We use GCP (startup credits!) and do training runs on a single 8xH100 cluster for about 3 days. On Lambda Labs @ 2.99 / H100 / hr, this would less than $2000 — for pretty good results

Eval Results

Category	Ours (8B)	Qwen-VL (7B)	Claude 3.5 Sonnet
RealWorldQA	44.1%	37.8%	60.1%
MMMU	29.8%	29.6%	65.9%
AI2D	54.5%	57.7%	80.2%
MathVista	19.3%	15.5%	61.6%

(these are all zero-shot — source https://huggingface.co/spaces/opencompass/open_vlm_leaderboard)

We keep up with Qwen-VL who are also leaders in the open source space!

Multimodal Evals

lmms-eval is a library identical to the EleutherAI llm-eval-harness— but for multimodal evals

Using it on your own model is relatively simple — just wrap your model in their inference class

They have a pretty robust list of tasks to try out, and you can also implement your own tasks

Early Fusion Training

We extend MMEmbedding now. We also leverage pre-trained models from the the original VQ-GAN paper to utilize VQ-VAEs

class MMVQVAEEmbedding(MMEmbedding):

    def __init__(self, vocab_size, perception_tokens, output_dim):
        super().__init__()
        self._embedding = nn.Embedding(num_embeddings=vocab_size, embedding_dim=output_dim)
        self._perception_tokens = perception_tokens
        self._context = []
        self._embed_keys = ["vqvae"]

    def set_input_context(self, mm_context):
        param = next(self.parameters())
        device, dtype = param.device, torch.long
        self._context = [
            {
                s: torch.cat([embed[k] for k in self._embed_keys]).to(device, dtype)
                for s, embed in context_dict.items()
            }
            for context_dict in mm_context
        ]

    def forward(self, tokens: Tensor, h: Tensor) -> Tensor:
        for b, context_dict in enumerate(self._context):
            # then by sequence idx
            for s, vae_tokens in context_dict.items():
                # and then must be transformed from tokens -> llama3 dim
                llama_embed = self._embedding(vae_tokens)[:h.size(1) - s]
                h[b, s:s+self._perception_tokens] = llama_embed
        return h

We have a new embedding table that takes in the VQ-VAE codebook ids to llama3's embedding dim

Eval Results

Category	Ours (8B)	Qwen-VL (7B)	Claude 3.5 Sonnet
RealWorldQA	25.4%	37.8%	60.1%
MMMU	20.2%	29.6%	65.9%
AI2D	31.1%	57.7%	80.2%
MathVista	5.3%	15.5%	61.6%

Late Fusion Vs Early Fusion

When comparing the evals, late-fusion comes out superior. But it's not reasonable to rule out early-fusion as a method completely yet

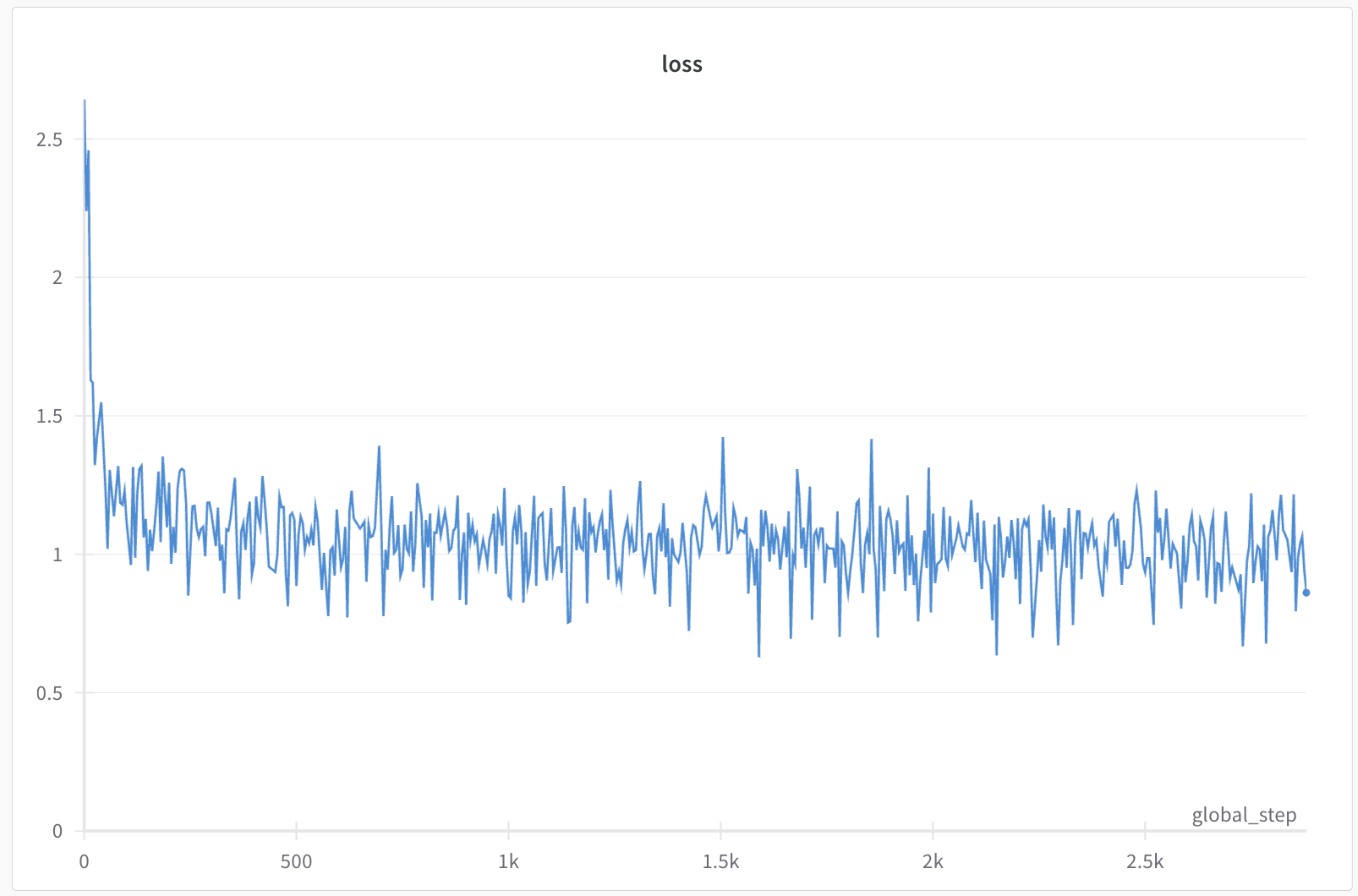

Late Fusion Loss

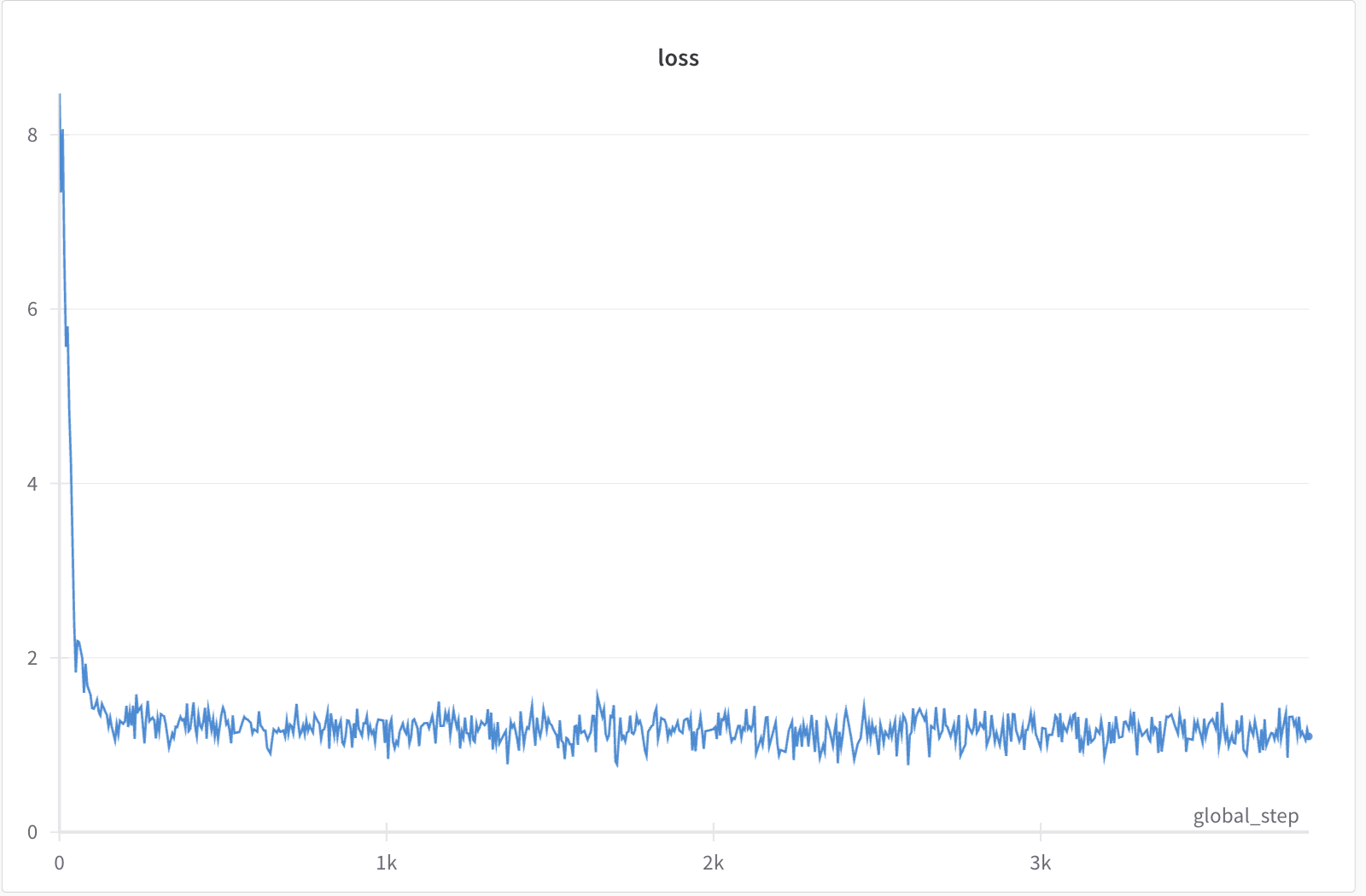

Early Fusion Loss

A big reason why the early fusion model is doing worse is because of how we've artificially increased the vocab size of our model — these parameters we need to "re-learn" are much more abundant than the projection layer parameters learned in the late fusion method

How does the loss graph reflect this?

The early fusion loss graph exhibits a sharper initial drop followed by a more volatile and higher loss throughout the training. This volatility can be attributed to the larger parameter space created by the increased vocabulary size, which complicates the learning process. The model struggles to optimize these additional parameters, leading to the observed instability

This just means that there is more learning to be done by early fusion models though, which is a good thing!

The larger parameter space means the model is not just learning isolated representations of each modality but is also learning to cross-communicate between them. This cross-learning through interleaved data can lead to richer and more nuanced representations of the input, potentially capturing intricate relationships between modalities that late fusion might miss

This will require bigger training runs with more data — which we did not test out (yet!)

Future

Better VQ VAE

Google & CMU have done some work on using VQ VAEs + 3D CNNs to create video tokenizers — which when used in transformers do better on image + video generation than diffusion. They dub that "Tokenizer Is Key to Visual Generation"

The two-key things that makes their tokenizer so good is using a huge vocabulary size with small embedding sizes — what they dub "lookup-free quantization" (LFQ) — and a joint image-video architecture that can effectively tokenize both images and videos using a shared codebook

There is so much room for more experimentation here:

Investigating more interplay between vocabulary size, embedding dimensionality, and model depth
Integrating self-attention within 3D-CNNs to improve local and global spatiotemporal dependencies in visual tokens
Have a "time-aligned" architecture where you can combine both audio + visual tokens to create video ones, maybe use attention (again) here

These are some out of the many ideas that me and PB would brainstorm about

Including Separate Attention Heads for Multimedia Inputs

A very easy thing to add to make late fusion better is having separate attention and feed-forward layers for the other multimodal features (which are separated from the text features)

We trained on everything using the same attentions heads because of how we though there would be cross-learning when using mixed text + image data — but adding these new parameters would ensure the model is learning from each modality independently before integrating the information

Credit to the CogVLM paper

Thanks for reading!

If you made it to the end, thanks! If you had any other questions about this article, do not hesitate to reach out to my email or twitter. If you think this work is interesting, Omega Labs is hiring for full-time research engineers. I'd be happy to refer anyone who pings me — including any Waterloo students looking for a next co-op

Additionally, I am looking for work either for Winter 2025 or Summer 2025. You can learn about me more on my website, but if you or your organization is working on problems that require doing training infrastructure, scaling data jobs, or anything you think I align with — ping me as well!

Cheers!

> Nima Pourjafar

Quick Background

What is Multimodal and Why?

Is Multimodal Provably better than Unimodal?

Does Multimodal Scale?

Late Fusion && Early Fusion

Late Fusion

Early Fusion

How Does Multimodal Tokenization Work?

Variational Autoencoders (VAEs)

Vector Quantized VAEs (VQ-VAEs)

Why does this work?

Experiments

Data

Late Fusion Training

Using ImageBind (Audio Understanding just from Images!)

Eval Results

Multimodal Evals

Early Fusion Training

Eval Results

Late Fusion Vs Early Fusion

Future

Better VQ VAE

Including Separate Attention Heads for Multimedia Inputs

Thanks for reading!
